On this page we will visually show and
identify the many different reflectors that were used on CCKW, Chevy, and
many different other World War 2 vehicles.
Click on the pictures to enlarge |
 |
 |
|

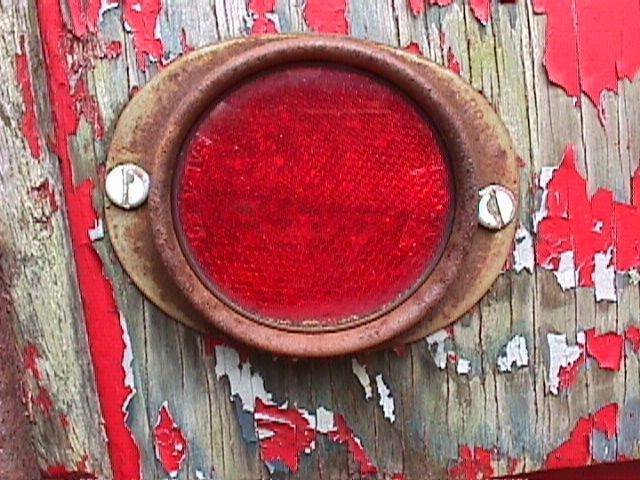

WWII Oval Grote with Grotelite 100 Lens (provided by
Bill Wolf) |

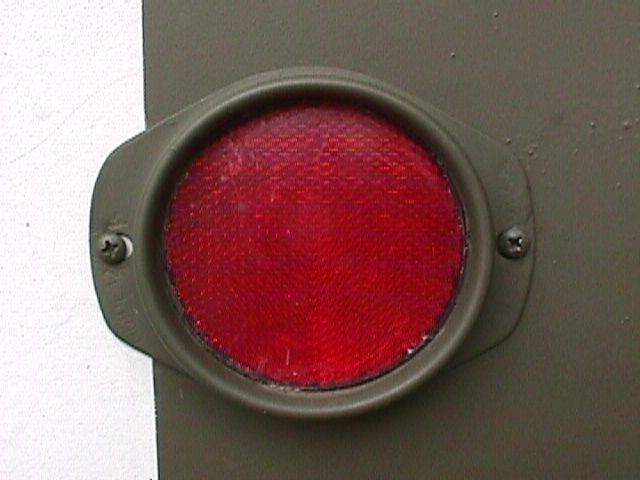

What is it? (provided by Bill Wolf) |
|
|
|
|

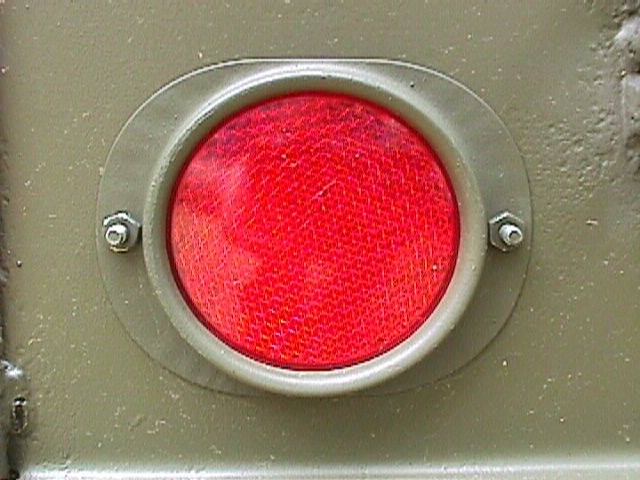

Guide A-2 housing with Stimsonite ? or Guidex ?
(provided by Bill Wolf) |

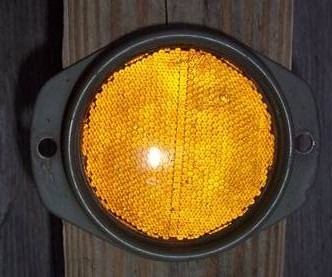

KOREAN WAR - 50s GUIDE A-2/ STIMSONITE 12A (provided by
Joel Gopan)
|
|
|
|
|

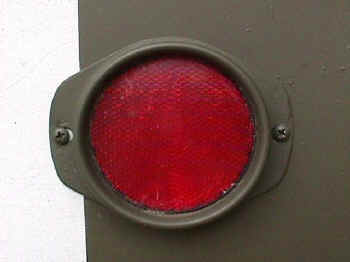

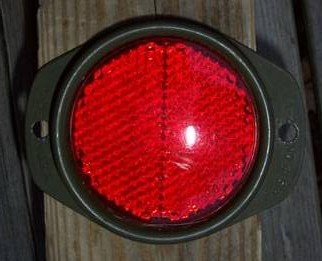

WWII Guide A-2, W/ STIMSONITE 12 NORMALLY FOUND ON CCKW CARGO TRUCKS
(provided by Joel Gopan) |

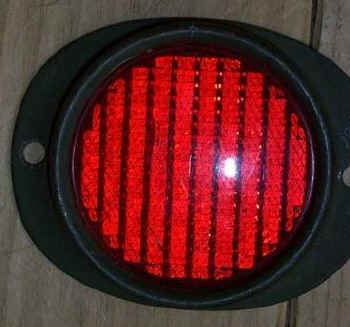

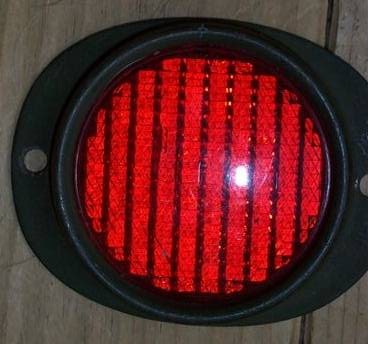

WWII YANKEE REFLEX W/SP OR SR-14 LENS THE LENSES ARE IDENTICAL BUT
HAVE DIFFERENT MANUFACTURERS (provided by Joel Gopan) |
|
|
|
|

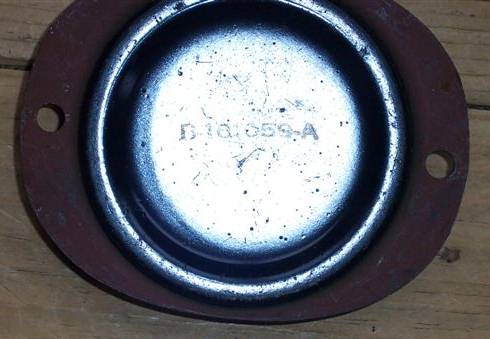

REVERSE OF YANKEE GENERIC B-161059 ORDNANCE NO., THIS NUMBER IS
FOUND ON THE BACK SIDE OF ALL WWII /KOREAN ERA REFLECTORS (provided by
Joel Gopan) |

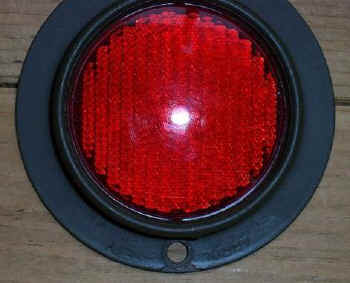

WWII ARROW WITH GROTELITE 100 LENS, COMMON ON BANTAM PRODUCED
G-518 1 TON TRAILER (provided by Joel Gopan) |
|
|
|
|

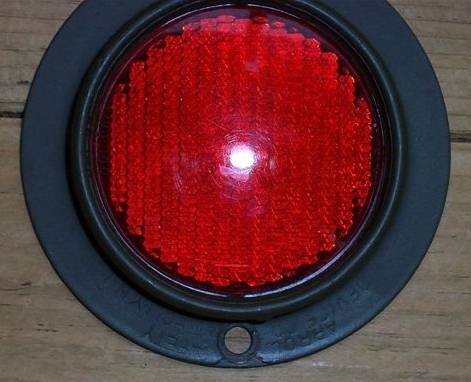

WWII ARROW WITH GROTELITE 100 LENS, COMMON ON BANTAM PRODUCED
G-518 1 TON TRAILER (provided by Joel Gopan) |

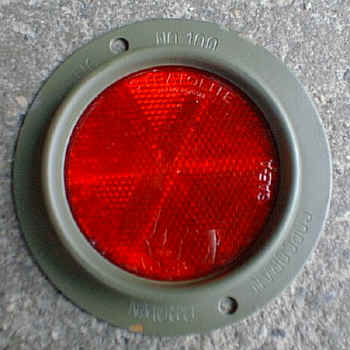

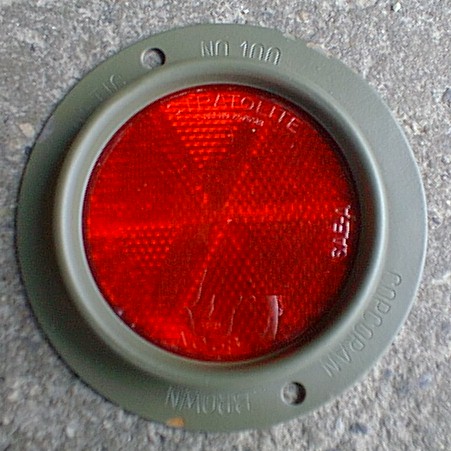

CORCORAN BROWN REPRO WITH GROTELITE LENS (provided by Yves Guillet) |
|
|
|
|

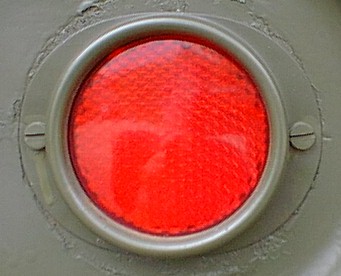

UNKNOWN OF A DODGE WEAPONS CARRIER (provided by Yves Guillet) |
|
| |
|
| Information from a message board
contributors, Joel Gopan, about reflectors and their application |
...Yves Reproduction Corcoran Brown Reflector is correct for the
WWII/Korean time period, the lens is today's' available DOT Spec, over the years the lenses, with more brand names than I wish to get into, have been constantly updated to keep up with latest reflectivity specs. The lens in Yves, "C-B" is what some refer to as a "pizza pattern", it is made by STRATOLITE and is 60 years too new. The Guide A-2/Stimsonite12, which Bill has posted, is the common reflector for General Motors
WWII (Guide is owned by GM) the King Bee with the "marble pattern", that protrudes
thru a metal shell, is the next most common to CCKW, and is found on many WWII Wood Cargo Bodies. Be
patient, someone is bound to post a picture. The round Corcoran Brown is common to WWII Jeep, and Dodge WC, and will be found on many of the hundred types of miscellaneous WWII equipment. Next best for WWII is to purchase the NOS amber KD or Yankee oval reflectors, and replace the lenses with period style lenses. I can help, but it will be expensive. Fred Potter, at Adirondack Dodge has the KD or Yankee Amber reflectors. I have a few of the SR or SP lenses, and they are period correct. As for Jim's question on changing the reflectors during Korea, the trucks did not get updates to keep up with the times, but when a reflector was changed for whatever reason, a trip to the salvage yard was made, or the reflector was replaced by whatever was available thru the system. In reality, the reflectors suffered the ravages od time, and would get
over sprayed during repainting, or during a "spot Painting" by persons who happened to be on duty at the
motor pool. The Sun, weather, damage by solvents, and 60 years of bubba took a toll also. In plain
English, there just ain't anyway to track the history of your truck to find out where the Guide A-2s went. For CCKW, Amber on the two forward facing reflectors, Red, on the two rear sides, and tailgate. At times you will see wartime evidence of Red reflectors on the rear
mud flaps, and in some of Vintage Videos Training films. Do not get confused with the M-Series practice of four Amber reflectors at front and front sides.
Joel |
|
